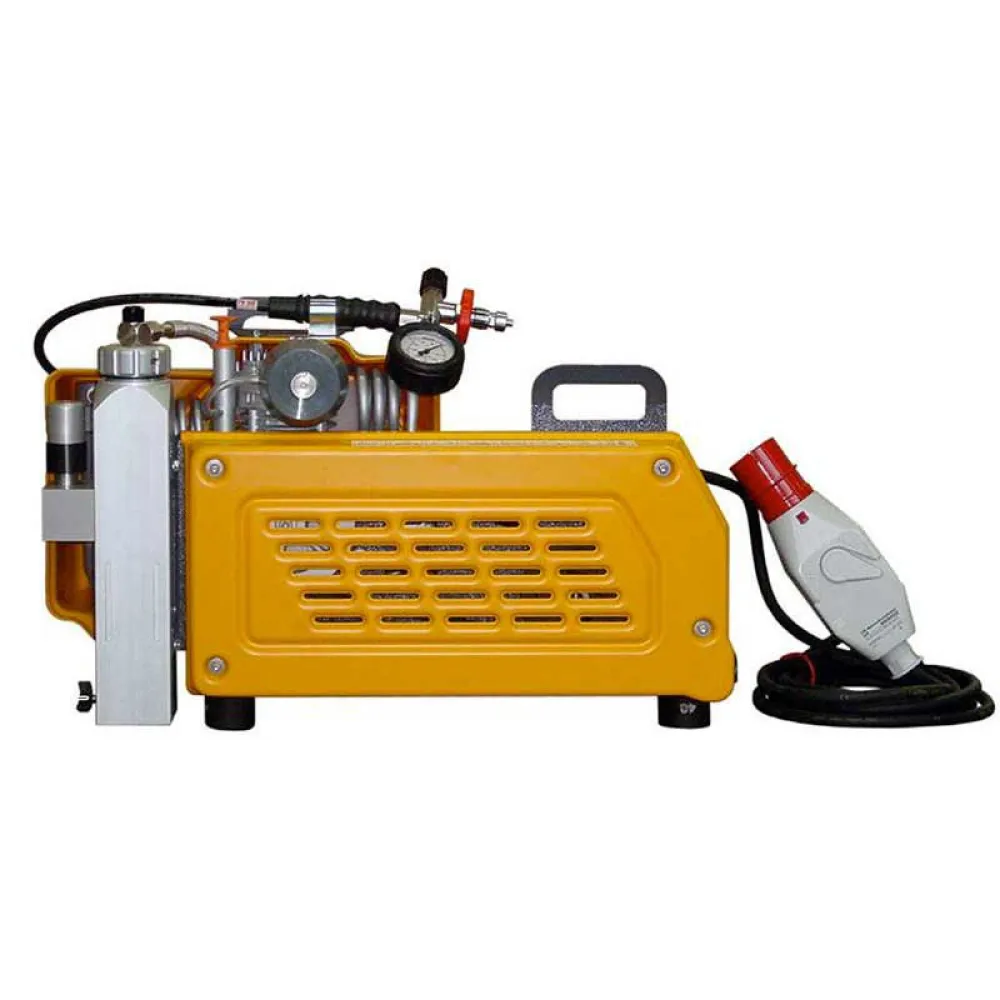

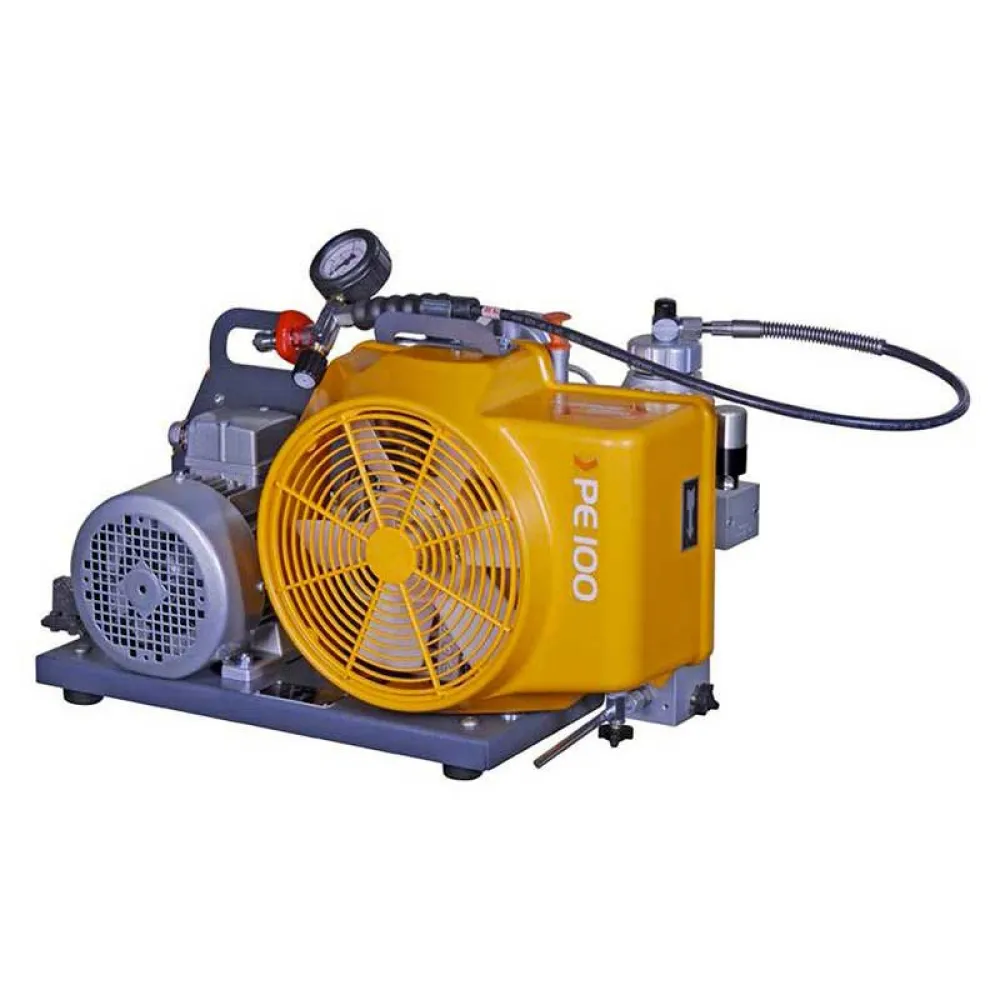

Bauer PE100 TW 225 Compressor

Description:

Clean breathing air: Thanks to advanced filter technology from BAUER and the P 11 filter system developed specifically for the PE 100.

Legendary reliability: Thanks to the world-proven compressor block of the PE 100.

Very long maintenance intervals: They reduce compressor maintenance costs and downtimes to a minimum.

Global BAUER sales force with more than 300 partners: Supplying spare parts and maintenance supplies in next to no time for many decades.

The PE 100 is by far the smallest and lightest unit in the PE series.

Its possible uses are virtually unlimited: with three drive options (petrol, three-phase current and alternating current), it is suitable for use in all manner of different applications on land or in vehicles.

Ideal as a breathing air compressor for groups of divers and fire crews or for the rapid filling of cartridges for sport shooting and paintball.

In the petrol version it is even capable of operation in the most remote of locations without a power supply. With an AC drive, it is even suitable for connection to a standard domestic power supply.

This lightweight and compact unit is easy to transport and will fit in almost any car boot.

Technical data:

Effective free air delivery 100 l/min.

Drive Alternating current motor 230 V, 50 HZ, 2.2 kW

Net weight approx. 44 kg

Dimensions LxWxH: 66x35x42 cm

Scope of delivery, basic version:

Complete compressor unit ready for operation, comprising:

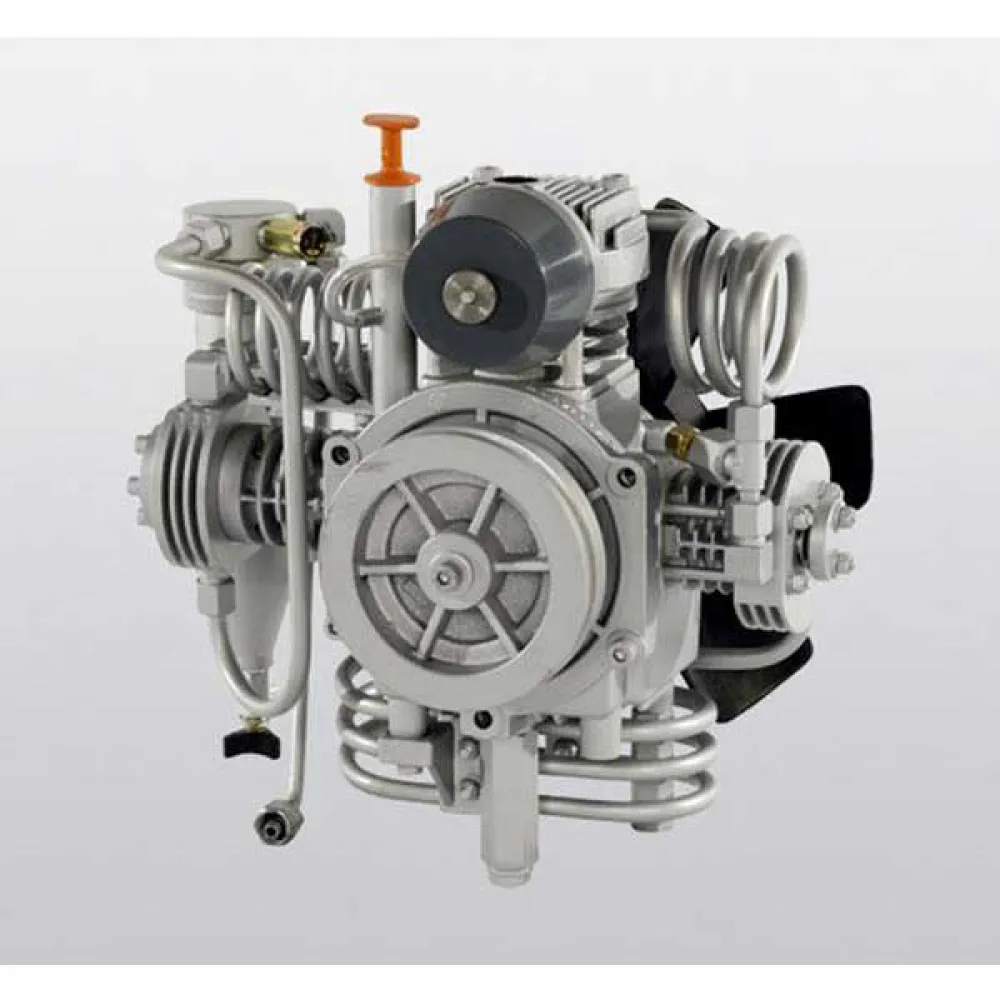

-3-cylinder, 3-stage compressor block

Micronic intake filter

Intercooler/aftercooler

Intermediate/final separator for oil/water condensate

Intermediate pressure safety valves after every compressor stage, final pressure safety valve type-tested to TÜV standard

Oil lubrication

Pressure retention valve/check valve after final compressor stage

-Three-phase/alternating current or petrol engine

-Petrol-driven model with telescopic intake tube.

Units with AC motors are supplied with motor circuit-breaker and connecting cable.

-Compressor block and drive motor are mounted on a base frame. Base frame, carrying handle and frame connections are made from paint-finished powder-coated steel.

The drive is a V-belt drive.

-Support frame

-P 11 filter system with TRIPLEX long-life filter cartridge

-PN 200 bar or PN 300 bar filling device

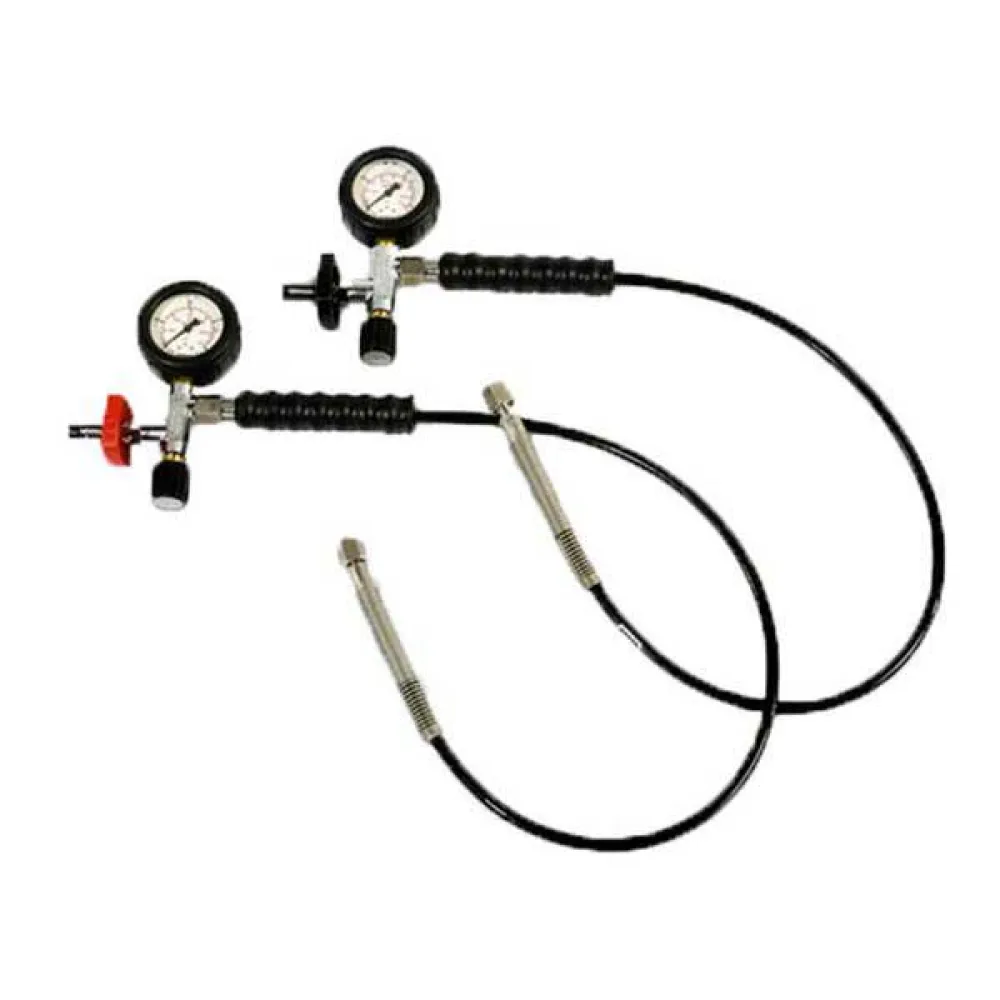

1 filling hose, 1 m long

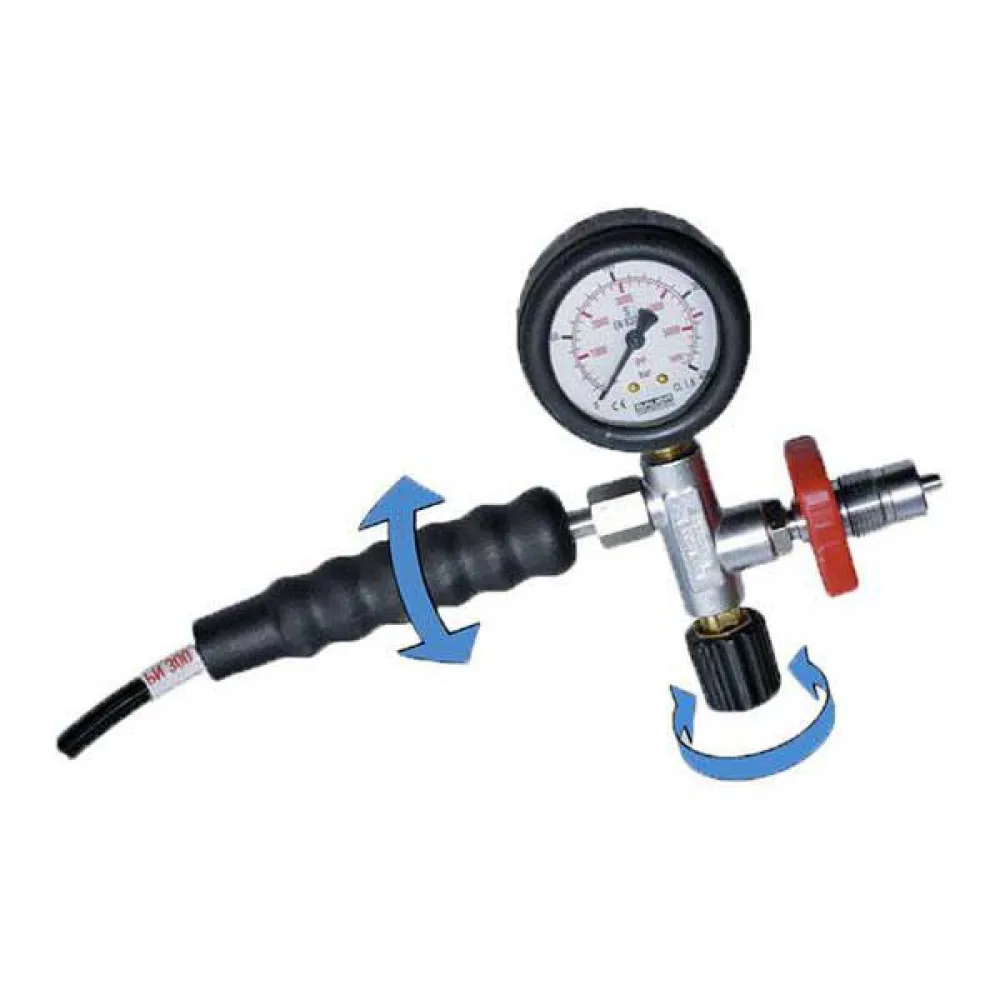

1 filling valve PN 200 or 300 bar, with automatic bleed and pressure gauge;

R ?´ threaded connection, to DIN EN 144-2

1 international filling valve PN 200 (not permitted in Germany)

-Operating instructions complete with spare parts list, CE declaration of conformity, pressure vessel certificates.
