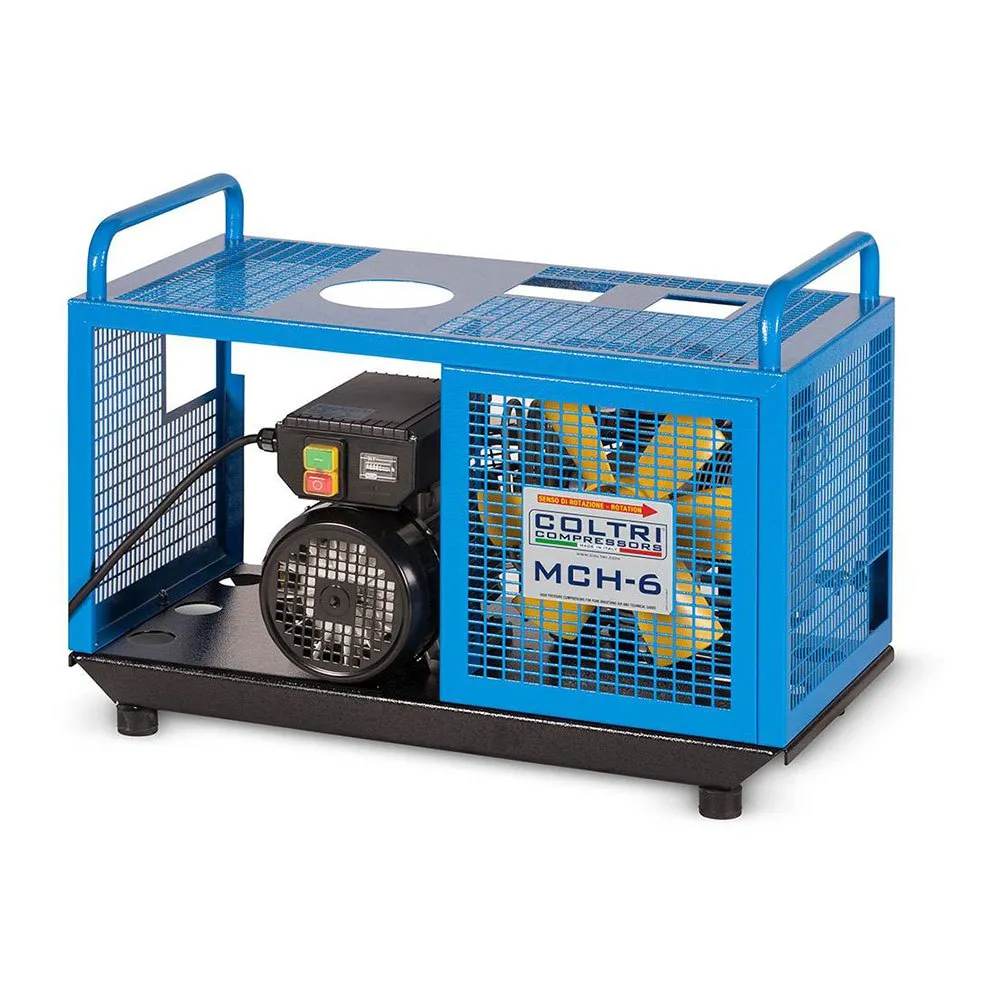

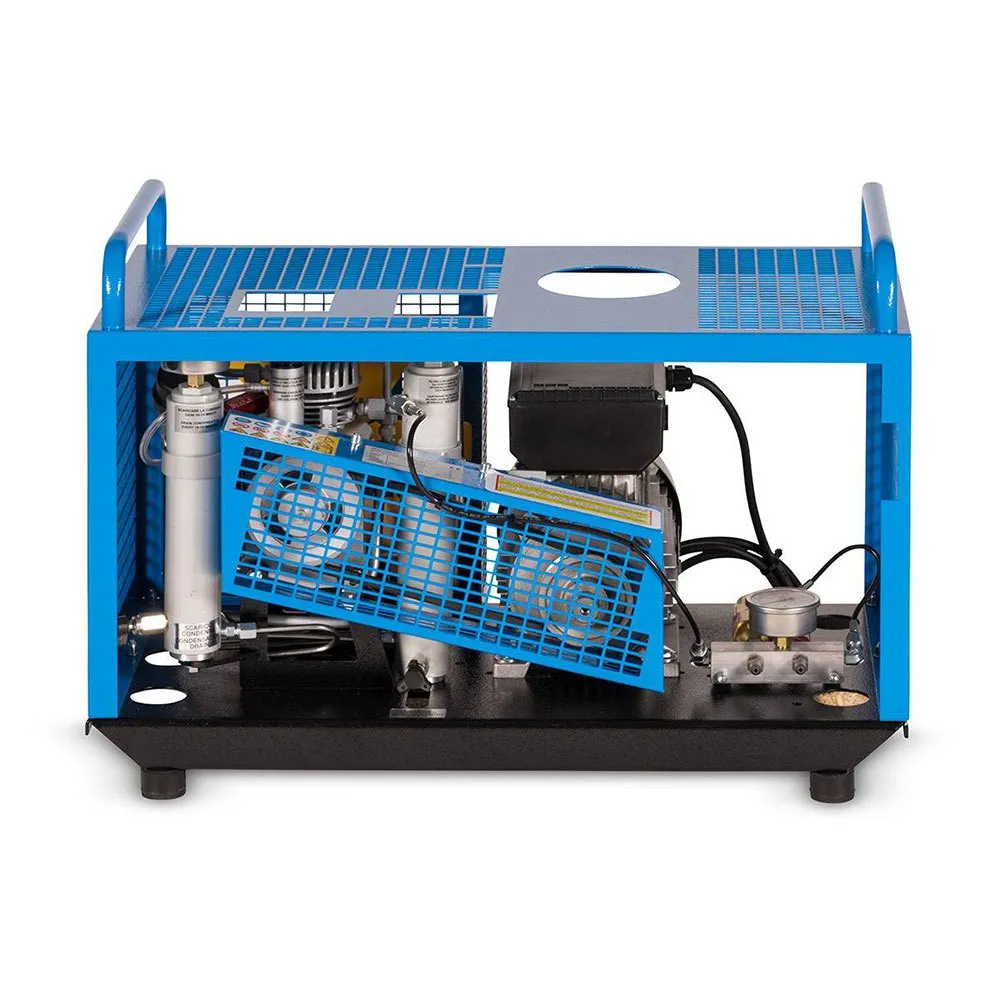

Compact MCH 6 EM Three Phase Compressor 400V 232 Bar

Model not valid for the American market, 50 Hz electric motor.

The reinforced and more enveloping frame makes the COMPACT range of compressors very popular in the naval sector.

All equipped with the MCH 6 popular pumping unit, they are available with petrol or electric engines, both three-phase and single-phase.

The equipment includes a filling connection for flexible tube with operating pressure from 232 to 300 bar.

The pressure holding valve, the automatic condensate drain and the autostop are available as an option.

The frames are also available in stainless steel.

Compact Line:Portables Technical drawing H:470 mm – W:730 mm – D:370 mm H:18.50 in – W:28.74 in – D:14.57 in Disegno tecnico compressori Compact Compact Table for product type To understand which product, proceed as appropriate.

? REQUEST INFORMATION Pumping group capacity MCH 6 EM Single-phase Electric Motor – 100 l/m – 6,00 m³/h – 3.53 CFM FAD MCH 6 ET Three-phase Electric Motor – 100 l/m – 6,00 m³/h – 3.53 CFM FAD MCH 6 SH Honda GP 200 – 100 l/m – 6,00 m³/h – 3.53 CFM FAD Filling time:* * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) MCH 6 EM Single-phase Electric Motor – 20 min.

MCH 6 ET Three-phase Electric Motor – 20 min.

MCH 6 SH Honda GP 200 – 20 min.

Operating pressure 232 – 300 bar 3365 – 4351 PSIG Net weight MCH 6 EM – Single-phase Electric Motor – 57,1 kg – 126 Lbs MCH 6 ET – Three-phase Electric Motor – 56,7 kg – 125 Lbs MCH 6 SH – Honda GP 200 – 47,3 kg – 104 Lbs Noise level MCH 6 EM Single-phase Electric Motor – 91 db MCH 6 ET Three-phase Electric Motor – 95 db MCH 6 SH Honda GP 200 – 83 db.
