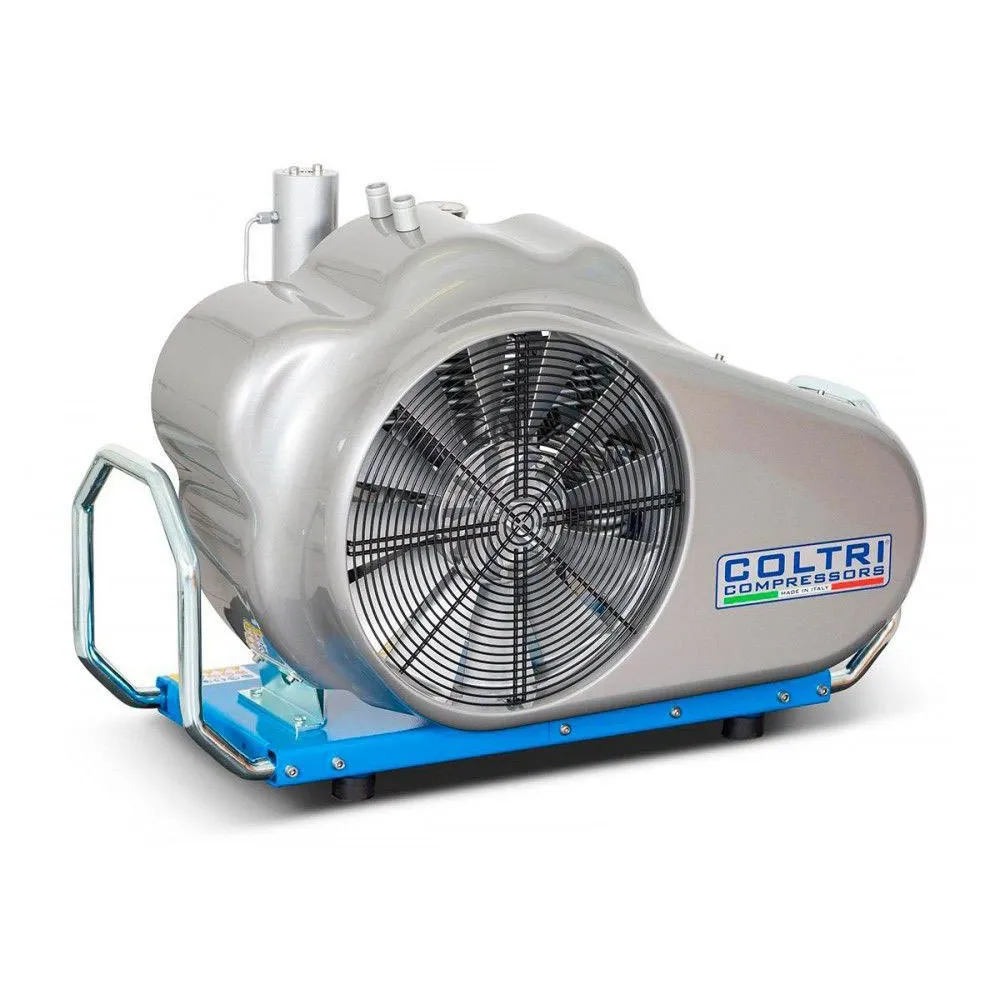

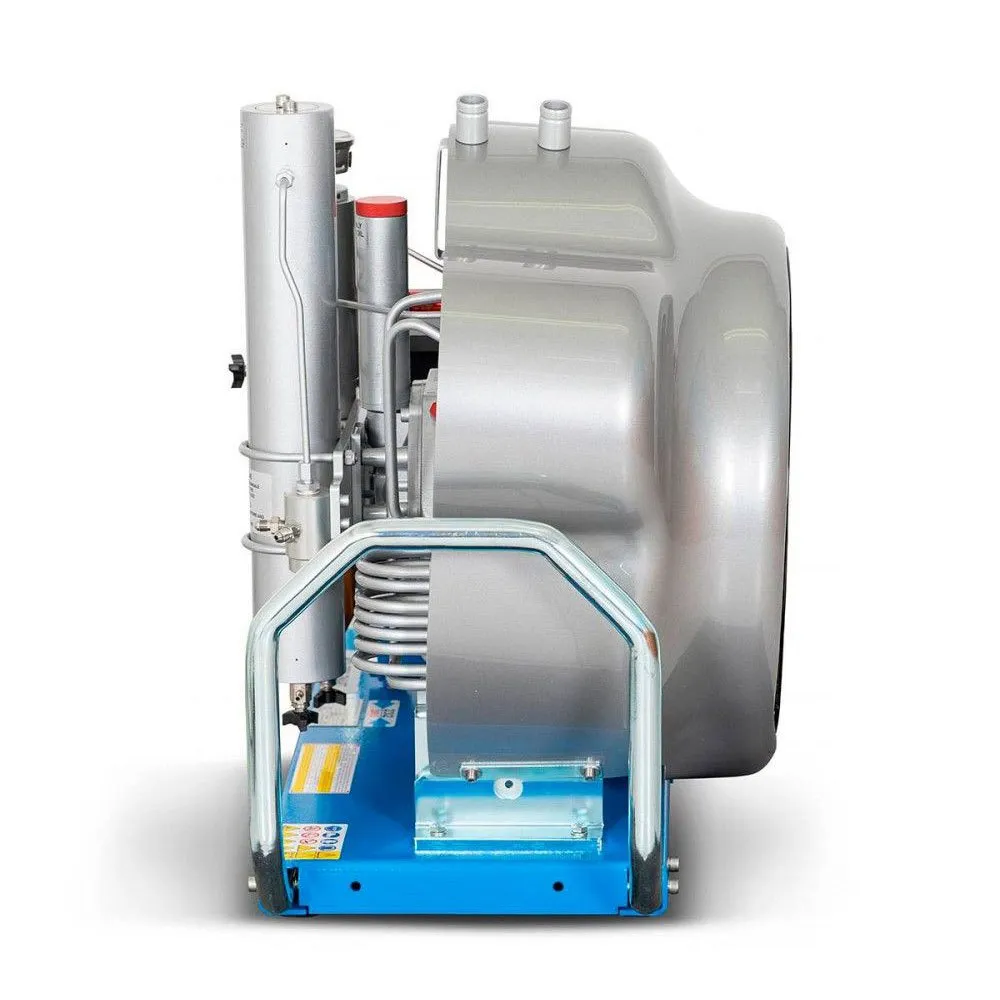

MCH11 Smart Single Phase Compressor
Original price was: £392.00.£95.99Current price is: £95.99.
- Where quality meets convenience.
- Safe Transactions, Always
- There are quality problems, free return and exchange
- Control the delivery date and try to deliver it in the fastest time
Model not valid for the American market, 50 Hz electric motor.
Coltri´s SMART line of breathing air compressors are STANDARD line evolution, the world´s best known and sold.
All models are equipped with two connections for high pressure hoses (from 232 to 330 bar), a single-phase or three-phase electric motor, robust pumping units (MCH 8, MCH 13 or MCH 16 depending on the specific model) and a compact frame with handles, suitable for transport.
External refilling panels and an electrical display are available as optional extras, with various automatic features including automatic condensate drainage and an autostop pressure gauge.
Smart Line:Efficient Technical drawing H:700 mm.
– W:1000 mm.
– D:460 mm H:27.56 in.
– W:39.37 in.
– D:18.11 in Disegno tecnico compressori Smart Smart Table for product type To understand which product, proceed as appropriate.
Pumping group capacity MCH 8 Single-phase Electric Motor.
– 135 l/m.
– 8,10 m³/h.
– 4.77 CFM FAD MCH 11 Single-phase Electric Motor.
– 195 l/m.
– 11,70 m³/h.
– 6.89 CFM FAD MCH 13 Three-phase Electric Motor.
– 235 l/m.
– 14,10 m³/h.
– 8.30 CFM FAD MCH 16 Three-phase Electric Motor.
– 315 l/m.
– 18,90 m³/h.
– 11.12 CFM FAD Filling time:Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) MCH 8 Single-phase Electric Motor.
– 16 min.
MCH 11 Single-phase Electric Motor.
– 10 min.
MCH 13 Three-phase Electric Motor.
– 8 min.
30 sec.
MCH 16 Three-phase Electric Motor.
– 6 min.
20 sec.
Operating pressure 232.
– 300.
– 330 bar 3365.
– 4351.
– 4786 PSIG Net weight MCH 8.
– Single-phase Electric Motor.
– 93 kg.
– 205 Lbs MCH 11.
– Single-phase Electric Motor.
– 100 kg.
– 220 Lbs MCH 13.
– Three-phase Electric Motor.
– 95 kg.
– 209 Lbs MCH 16.
– Three-phase Electric Motor.
– 105 kg.
– 231 Lbs Noise level MCH 8 Single-phase Electric Motor.
– 79 db MCH 11 Single-phase Electric Motor.
– 79 db MCH 13 Three-phase Electric Motor.
– 80,7 db MCH 16 Three-phase Electric Motor.
– 82,3 db Available on request MCH 16 Single-phase Electric Motor.
| Size | One Size Grey / Blue |
|---|---|
| Color | Silver |
