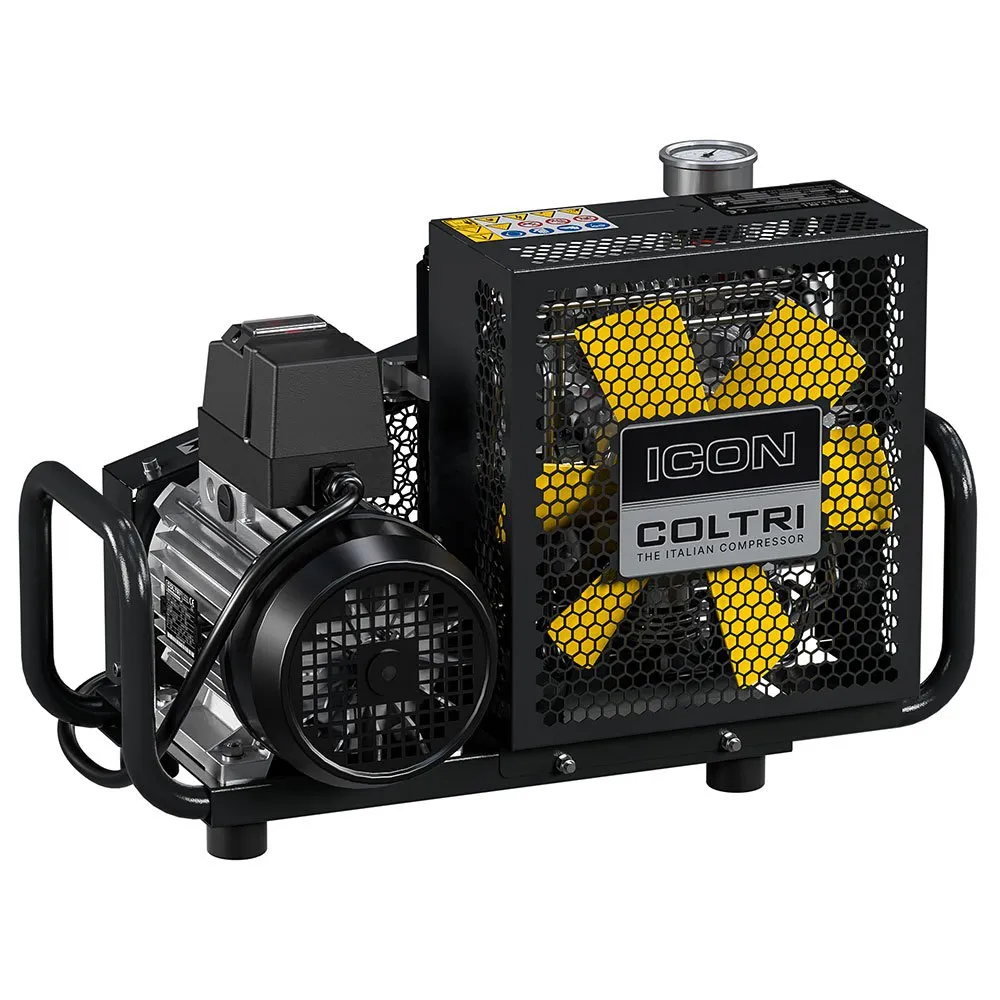

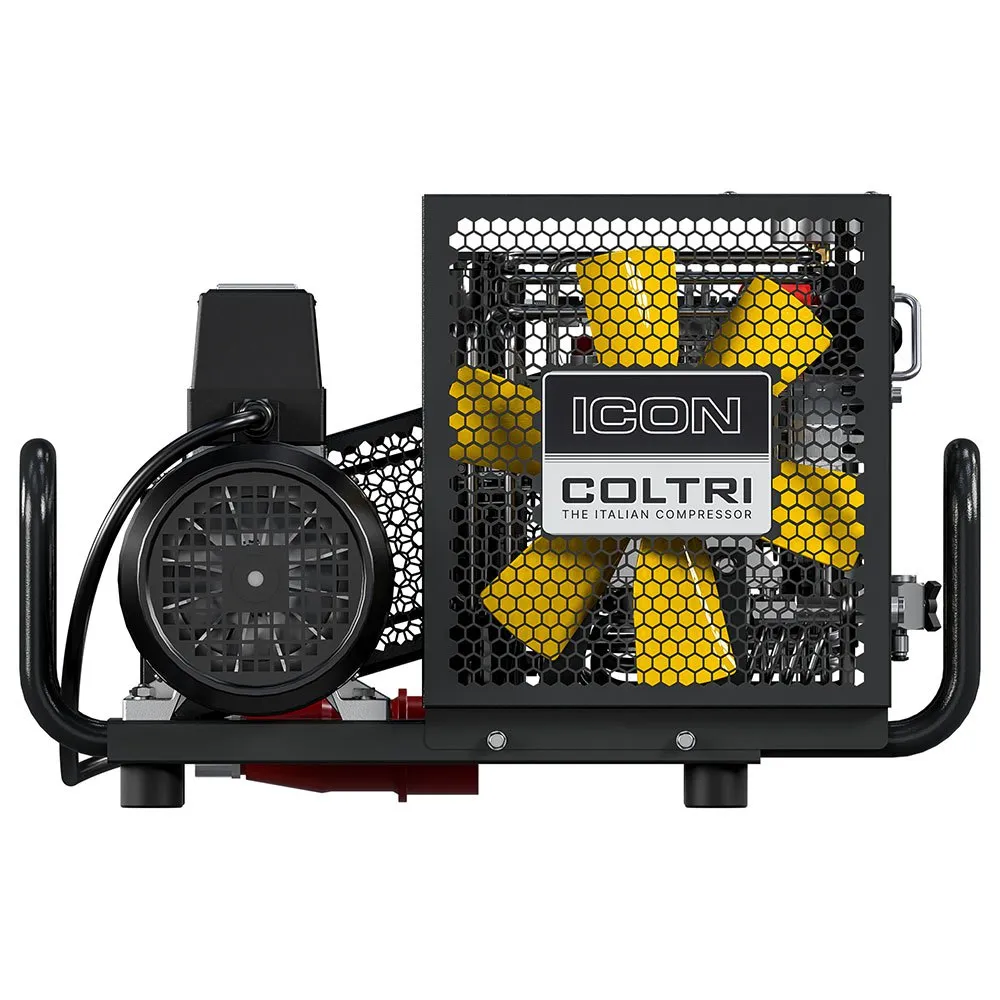

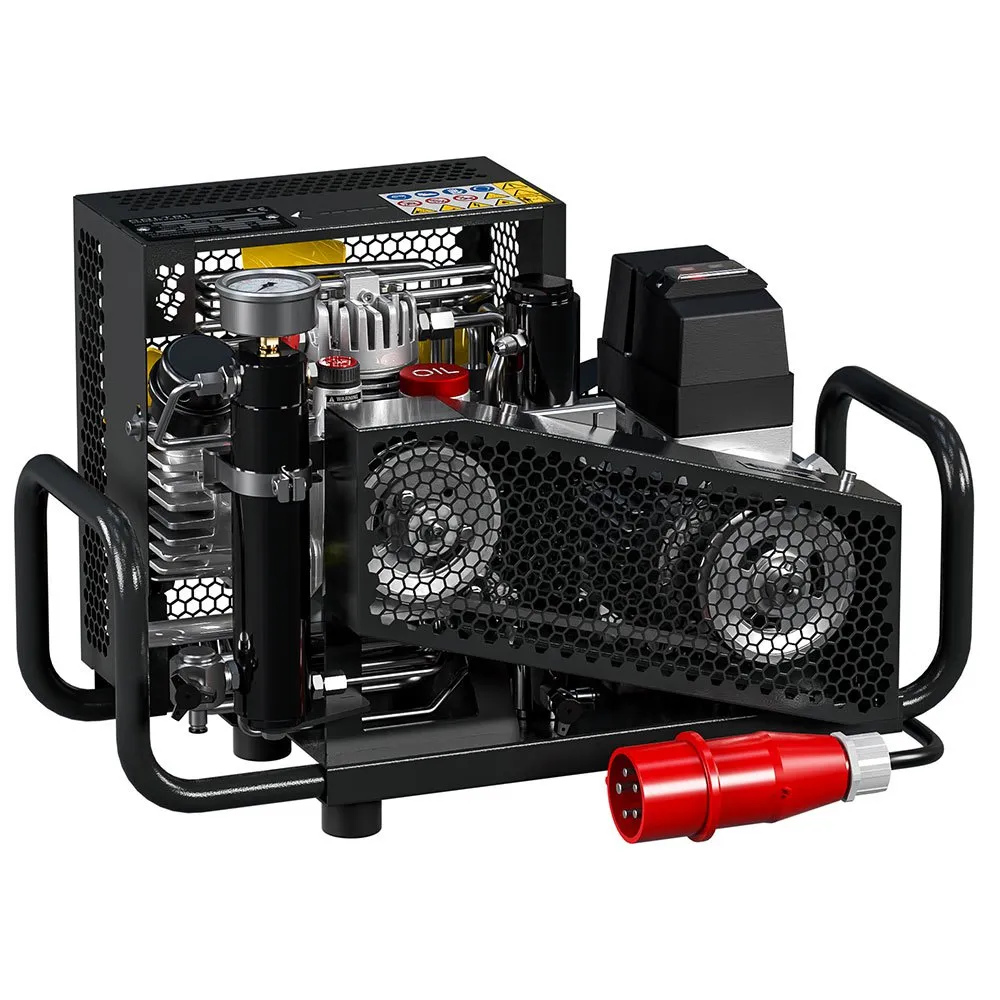

MCH6/ET 300 Bar 400V Portable Compressor

Model not valid for the American market, 50 Hz electric motor.

300 bar electric compressor.

The most used portable compressors in the world are part of the BASIC series.

Compact and lightweight, the models meet the needs of high pressure breathable air for the diving world, recreational activities, fire-fighting services and small paintball facilities.

All equipped with the MCH 6 popular pumping unit, they are available with petrol or electric engines, both three-phase and single-phase.

The equipment includes a filling connection with flexible tube with operating pressures from 300 BAR , while the pressure holding valve, the automatic condensate drain and the autostop are available as an option.

H:350 mm – W:750 mm – D:390 mm H:13.78 in – W:29.53 in – D:15.35.

To understand which product, proceed as appropriate.

Pumping group capacity MCH 6 EM Single-phase Electric Motor – 90 l/m – 5,40 m³/h – 3.18 CFM FAD * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) 25 min.

Net weight – 39,5 kg – 87 Lbs.

Noise level – 91 db.
