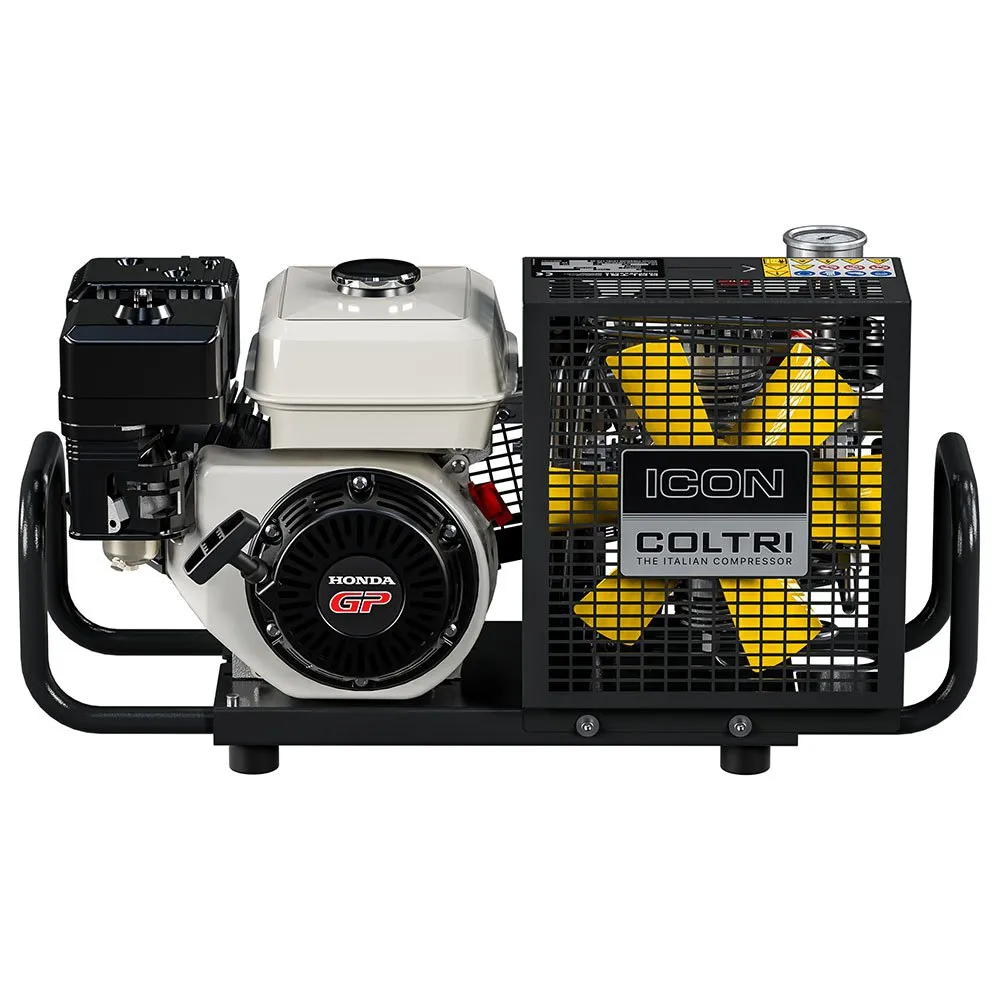

MCH6/SH Gasoline Portable Compressor 300 Bar

The most used portable compressors in the world are part of the BASIC series.

Compact and lightweight, the models meet the needs of high pressure breathable air for the diving world, recreational activities, fire-fighting services and small paintball facilities.

All equipped with the MCH 6 popular pumping unit, they are available with petrol or electric engines, both three-phase and single-phase.

The equipment includes a filling connection with flexible tube with operating pressures from 232 to 300 bar, while the pressure holding valve, the automatic condensate drain and the autostop are available as an option.

The frames are also available in stainless steel Basic Line:Portables Technical drawing:- H:350 mm / 13.78 in.

– W:750 mm / 9.53 in.

– D:390 mm / 15.35 in.

Compressors technical drawing Basic Basic Table for product type To understand which product, proceed as appropriate.

Pumping group capacity MCH 6 EM Single-phase Electric Motor – 90 l/m – 5,40 m³/h – 3.18 CFM FAD MCH 6 ET Three-phase Electric Motor – 100 l/m – 6,00 m³/h – 3.53 CFM FAD MCH 6 SH Honda GP 200 – 100 l/m – 6,00 m³/h – 3.53 CFM FAD MCH 3 Low Consumption Single-phase Electric Motor – 50 l/m – 3,00 m³/h – 1.77 CFM FAD Filling time:* * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) MCH 6 EM Single-phase Electric Motor – 25 min.

MCH 6 ET Three-phase Electric Motor – 20 min.

MCH 6 SH Honda GP 200 – 20 min.

MCH 3 Low Consumption Single-phase Electric Motor – 36 min.

Operating pressure 232 – 300 bar 3365 – 4351 PSIG Net weight MCH 6 EM – Single-phase Electric Motor – 39,5 kg – 87 Lbs MCH 6 ET – Three-phase Electric Motor – 39 kg – 86 Lbs MCH 6 SH – Honda GP 200 – 37 kg – 82 Lbs MCH 3 Low Consumption – Single-phase Electric Motor – 39,5 kg – 87 Lbs Noise level MCH 6 EM Single-phase Electric Motor – 91 db MCH 6 ET Three-phase Electric Motor – 95 db MCH 6 SH Honda GP 200 – 83 db MCH 3 Low Consumption Single-phase Electric Motor – 91 db.
